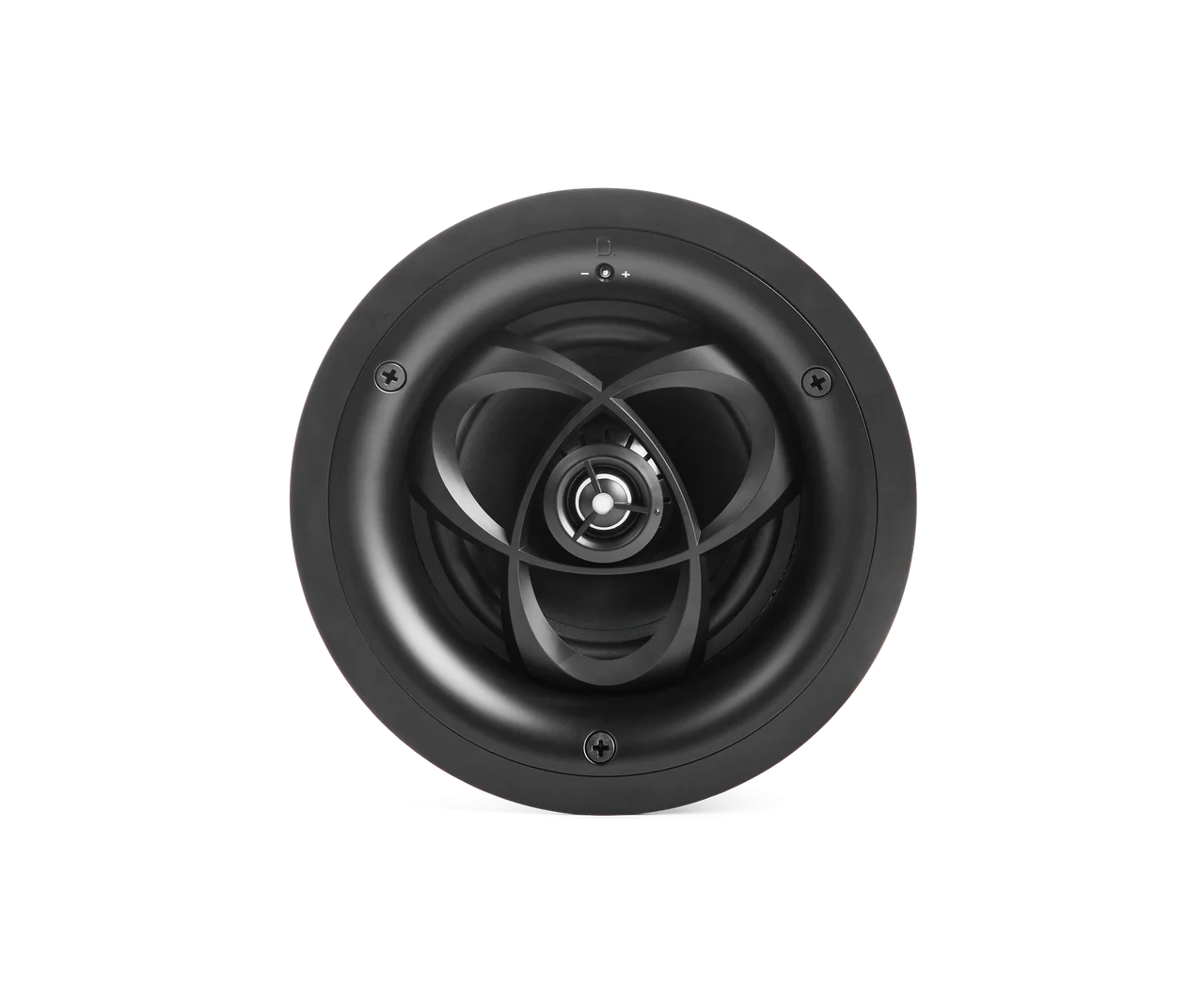

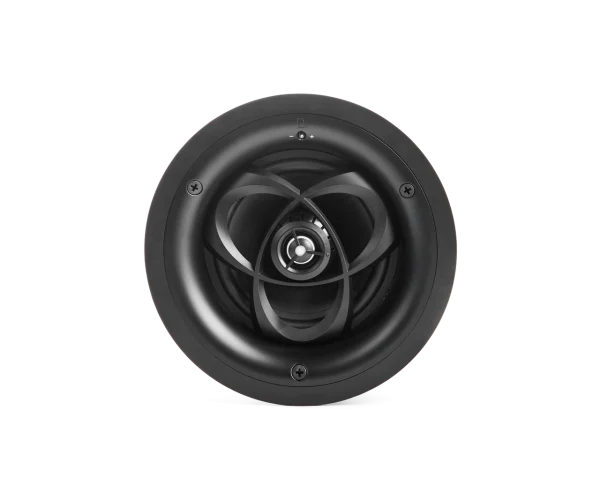

Dymension DC-65 MAX

Toolless Installation

A simple, elegant two-piece mounting system with pivoting “dog” arms allows speakers to be installed without tools, safely and securely, in minutes. Pre-construction brackets are available for all Dymension CI models.

Discreet Design
Integrated frames and baffles; paintable, micro-perforated magnetic grilles and a flush, border-free design mean speakers fade into the background for a virtually invisible appearance that’s in perfect harmony with your space.

Mineral-Filled Woofer
A light, rigid woofer reproduces rich, clear music and movie soundtracks. Choose the DC-65 PRO, with a 6.5-inch woofer, or for even more powerful sound and deeper bass, the 8-inch DC-80 PRO.

Pivoting Aluminum Oxide Dome Tweeter
A 1” aimable tweeter lets you place speakers in convenient locations while aiming highs precisely where they matter most.

Single-Speaker Stereo Solution
The DC-65 PRO SI, with its two inputs and dual voice coil woofer, produces stereo sound in a single round ceiling speaker. It fits in small spaces that can be impractical for speaker pairs, like kitchens, showers, entryways, and under eaves.

IP55-Rated Construction
With IP55-rated protection against dust and low-pressure water streams, you can bring premium sound to any space, including high-humidity environments and outdoor areas.

Timbre-Matched
Combine timbre-matched Dymension™, Dymension CI, and Mythos® speakers and Descend Series subwoofers to design high-performance home theater or whole-home systems of any size and scale.

• Product Dimensions (Diameter)11.80 in (299.8 mm)
• Cut- Out Dimensions (Diameter)10.57 in (268.6 mm)
• Mounting Depth4.97 in (126.4 mm)
• Weight5.47 lbs (2.48 kg)
• ColorWhite Paintable Grille
• Grille materialMicro-Perforated Magnetic Grille
• Tweeter1 in Pivoting Aluminum Oxide Dome Tweeter
• Midrange/Midbass8 in Mineral Filled Poly
• Frequency response26 Hz–30 kHz (-10dB)
  42 Hz–25 kHz (-3dB)
• Nominal impedance6Ω
• Sensitivity88dB (2.83V/1m)
• Recommended Amplifier Power20-120W
• IP Rating (Ingress Protection)IP55
• Warranty5 years
• Included accessories Grille, Literature Pack (QSG/Registration Card/Warranty), Hole Cutting Guide
